ENTity USB Videoscope

The Next Generation of ENTity™ is Here

ENTity USB Videoscope

The Evolution of the Brand You Trust

For over 50 years, the Optim name has stood for clinical excellence and reliability. Now, that same legacy is digital. Introducing the ENTity™ USB Videoscope, High-definition distal chip imaging that plugs directly into your workflow.

Plug-and-Play Connectivity

2 Year Warranty

Industry-Best 2-Year Warranty

American Made & Supported

Request a Quote & Online Demo View Technical Specifications

Built on 50 Years of Innovation. Driven by Your Feedback.

We’ve spent five decades perfecting visualization with our legendary ENTity XL and SDXL fiberscopes. We know what clinicians need: durability, clarity, and ease of use. The ENTity™ USB Videoscope is the next logical step in that journey. It isn’t just a new product; it’s the digital expansion of a clinical standard, designed to give you more freedom without compromising on the quality you expect from Optim.

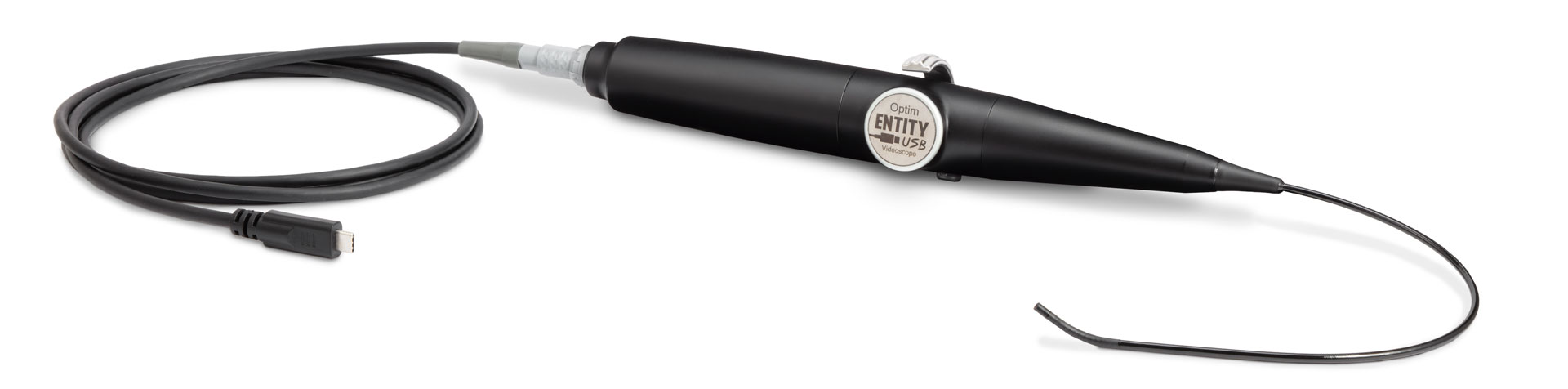

Optim's ENTity USB Videoscope

High-resolution CMOS distal chip (720×720)

Clarity Without Compromise – Eliminate the “honeycomb” effect of traditional fiber optics. Gain crystal-clear, edge-to-edge visualization of the vocal cords and pharyngeal structures for more confident dysphagia assessments and airway exams.

ENTity USB Videoscope

1 lb. All-in-One Handle; Removable 6ft USB-C Cable

True Portability for the Modern Workflow – No separate light sources. No external processors. No bulky towers. Whether you are moving between exam rooms or traveling between facilities for FEES evaluations, your entire endoscopy suite now fits in a single carrying case.

Slim 3.6mm shaft; 135° Up/Down articulation

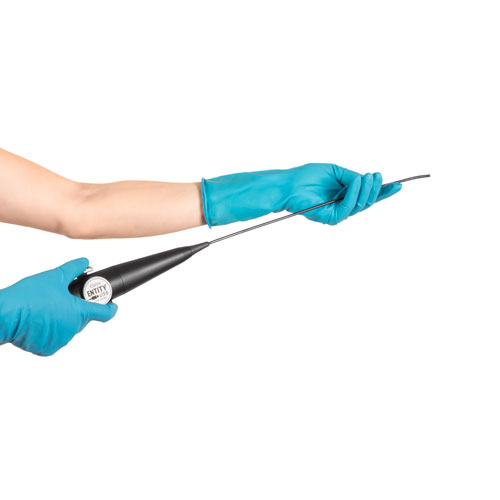

Ergonomics & Control – Designed for patient comfort and clinician control. The lightweight handle reduces fatigue during long clinic days, while the smooth articulation allows for precise navigation through the nasal cavity.

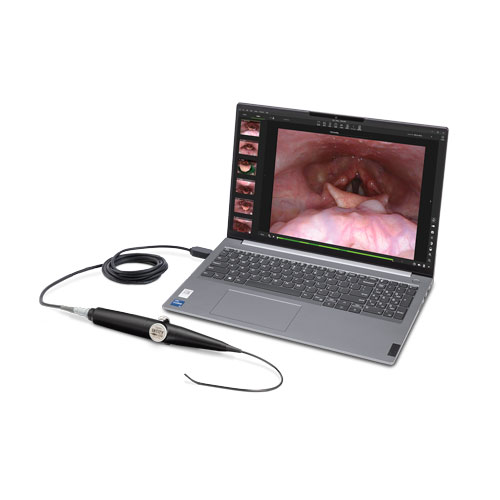

Capture. Document. Share.

Modern medicine requires modern documentation. The ENTity™ USB Videoscope is designed for seamless integration.

  • Plug-and-Play: Works with any qualified Windows-based laptop using native camera applications.
  • TIMS Medical Software: Optimized for ENT, SLP, and FEES specialists requiring high-resolution video capture, frame-by-frame analysis, and secure EMR integration.
Learn More About TIMS
2 Year Warranty

The Only USB Videoscope with a 2-Year Warranty

In a market where digital scopes are often seen as fragile or high-maintenance, Optim stands alone. We back the ENTity™ USB Videoscope with the industry’s only 2-year warranty.

Manufactured in Sturbridge, MA

We control the quality from design to shipping.

Domestic Support

If you have a question, you talk to our experts in Massachusetts.

Workflow Continuity

Designed for easy High-Level Disinfection (HLD) with watertight port covers included.

Unmatched Clinical & Technical Support

From initial setup to daily use, the Optim support team is here to guide you every step of the way.

Equipment Training & Software Installation

Personalized setup and training to ensure immediate proficiency.

Ongoing Technical & Clinical Assistance

Dedicated support for your equipment and software queries.

Industry-Leading Service & Maintenance

Fast turnaround times to minimize disruption to your practice.

Optional Clinical Proficiency Training

Available programs to help clinicians develop confidence in performing and interpreting FEES procedures.

Learn More

Technical Specifications

The ENTity™ USB Videoscope system features a streamlined insertion shaft, ergonomic handle, and custom removable USB-C cable that connects directly to a compatible computer to power the device and display live imaging. The flexible shaft is gently guided through the nasal cavity and precisely controlled using the handle’s articulation lever for targeted navigation. Lightweight and portable at just 1 lb., the system is built for ease of use in a wide range of clinical settings.

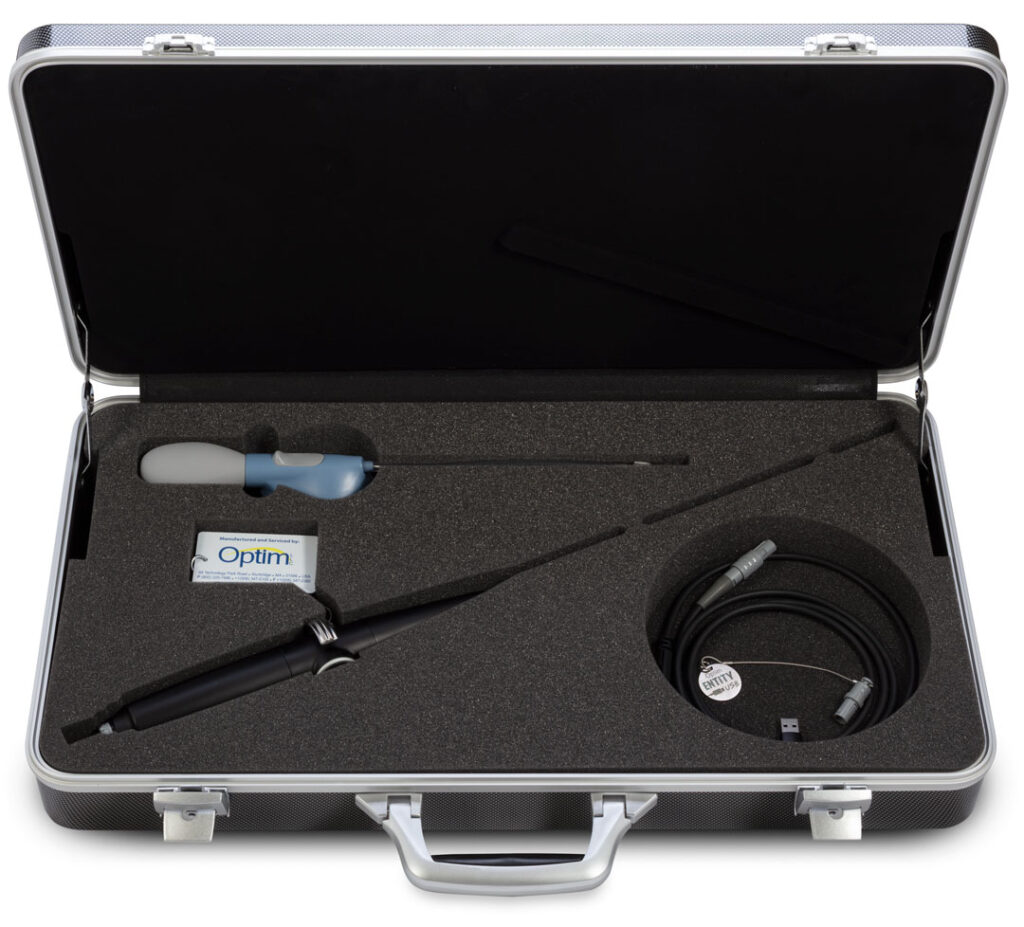

The ENTity™ USB Videoscope Kit
  • ENTity™ USB Videoscope
  • 6′ USB-C Cable
  • USB-C to USB-A Adapter
  • Vent Tag & Cap
  • (2) USB Cleaning Caps
  • IFU and Carrying Case

Flexible Length

30cm (11.8”)

Overall Length

31cm (24”)

Shaft Diameter

3.6mm

Weight

1 lb

End Tip Articulation

135° Up / 135° Down

Depth of Field

5mm to 50mm

Field of View

125° (corner to corner FOV) and 90° (vertical FOV)

Connection Type

USB-C

Camera Type

CMOS (Distal Chip)

Resolution

720 x 720

Light Source

Internal LED

USB Cable Length

6′

Frequently Asked Questions (FAQ)

The ENTity USB Videoscope Kit includes the scope, a 6′ USB-C cable, a USB-C to USB-A adapter,
a vent tag and cap, two USB cleaning caps, instructions for use, and a carrying case.

Yes, when using the provided watertight USB port covers, the scope is designed for standard High-Level Disinfection protocols.

The internal LED is calibrated specifically for the CMOS sensor, providing bright, automatic white-balanced illumination without the need for a separate light box.

Yes, it is designed for flawless integration with TIMS Medical for advanced reporting and storage.

While engineered specifically for the precision required by Otolaryngologists (ENT Physicians) and Speech-Language Pathologists (SLPs) specializing in FEES (Flexible Endoscopic Evaluation of Swallowing), the ENTity™ USB Videoscope is a versatile tool for any clinician requiring high-definition airway visualization. Its slim 3.6mm profile and plug-and-play portability make it an ideal solution for Pulmonologists performing upper airway screenings, Anesthesiologists for difficult airway assessments, and Emergency Medicine or Critical Care providers who need immediate, high-resolution diagnostic capabilities at the patient’s bedside without the delay of a traditional endoscopy tower.

Optim provides comprehensive training and setup support to ensure a smooth and confident implementation of the MobileFEES system. This includes initial system setup and configuration, hands-on equipment training for clinicians and staff, and guidance on best practices for clinical use and workflow integration. Optim also works closely with experienced clinical specialists who offer CEU-eligible training programs, helping clinicians meet continuing education requirements while gaining practical, real-world experience with MobileFEES. Training can be provided onsite or virtually, and ongoing technical support is available to support long-term success.

Optim’s 2-year warranty covers manufacturer defects in materials and workmanship under normal use. This includes issues related to internal components, image quality, and system functionality that are not caused by misuse, accidental damage, or improper handling. During the warranty period, Optim will repair or replace covered components at no cost, ensuring reliable performance and peace of mind for your clinical team.

TIMS annual subscriptions include comprehensive training, ongoing technical support, all software upgrades, and access to live phone support available Monday through Friday, 8:00 a.m. to 8:00 p.m.

All repairs are performed at Optim’s Sturbridge, Massachusetts facility by trained technicians. Each unit receives a full evaluation and service report, with no repairs completed without customer approval. Most repairs are turned around within 7–10 business days, and loaner equipment may be available to help minimize downtime.

Simply complete the “Schedule a Demo” form below. A product specialist will contact you to schedule a demonstration, answer any questions, and provide a detailed quote.

Experience the Next Generation of ENTity™

Upgrade your clinical visualization with the brand you already trust. Request your personalized quote or online demonstration today and see why the ENTity™ USB Videoscope is the new standard for the modern clinic.
